CFK510, CWH634 Single Din Dash Kit Wiring Harness for 1984-2001 Dodge

American International CFK510, CWH634 Car Radio Stereo Single DIn Dash Kit Wiring Harness for 1984-2001 Dodge

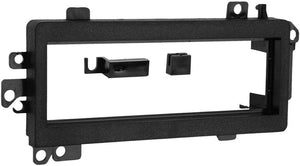

Dash Kit:

Product Features:

• Install dash kit for Single DIN/ISO Radios
• Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
• Painted to match the factory dash color
• High-grade ABS plastic construction
• Factory style texture

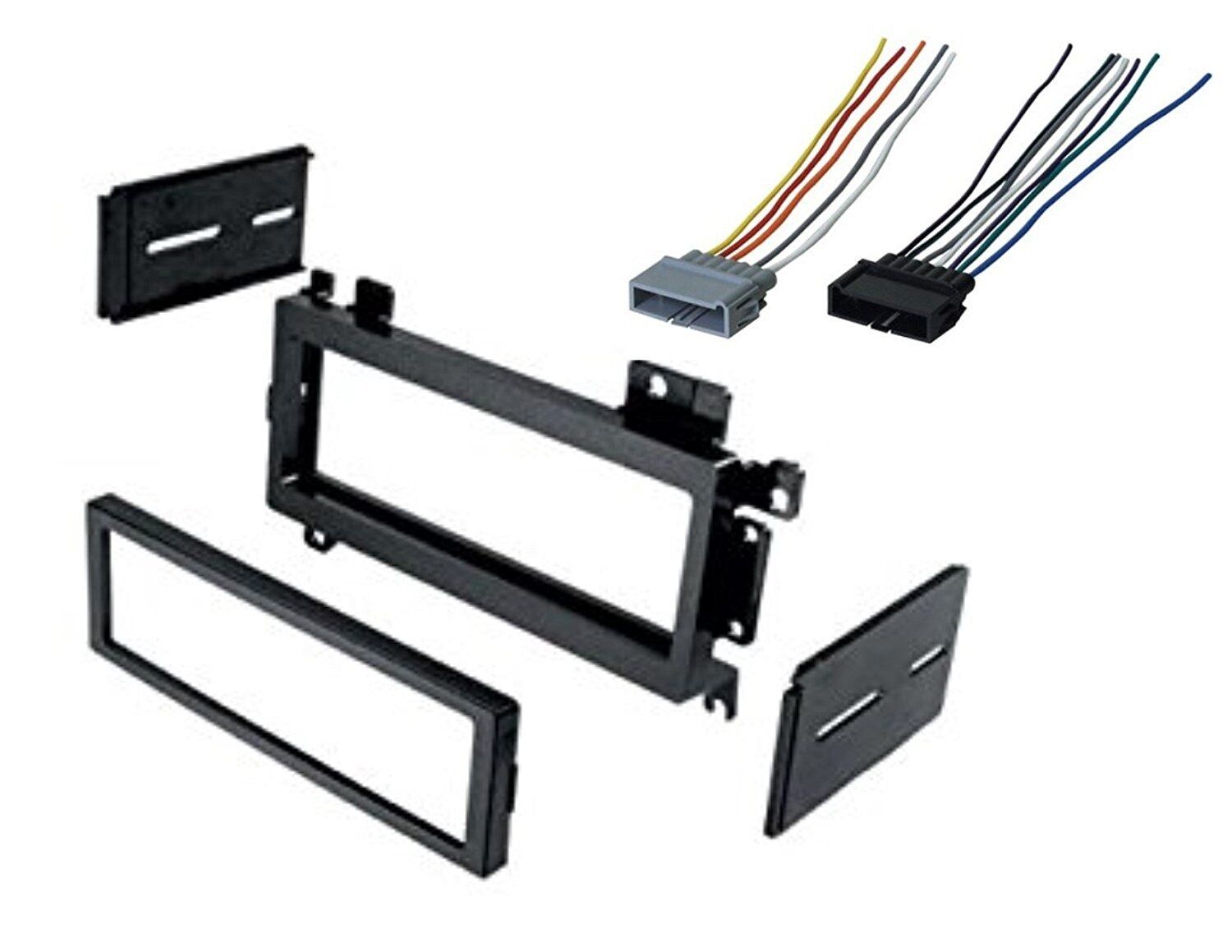

​Kit Includes:

• Radio Housing
• Radio Housing Trim Plate
• Radio Housing Brackets

Wire Harness:

Product Features:

• Plugs into car harness at radio
• Power/4-Speaker
• Two 8 Pin connectors
• Excellent flexibility, power handling, and higher heat resistance
• 7" in length
• Two 8-Pin connectors
• Terminals lock securely

​​Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Orange - Dash Light Dimmer/Illumination
• Green - Left Rear Speaker (+)
• Green with Black Stripe - Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White with Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple with Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray with Black Stripe - Right Front Speaker (-)

Vehicle Compatibility:

DODGE

• 1994 - 2001 Ram 1500
• 1994 - 2001 Ram 2500
• 1994 - 2001 Ram 3500
• 1999 - 2001 Ram 1500 Van
• 1999 - 2001 Ram 2500 Van
• 1999 - 2001 Ram 3500 Van
• 1981 - 1994 B150
• 1995 - 1998 B1500
• 1995 - 1998 B2500
• 1995 - 1998 B3500
• 1974 - 1993 Ramcharger
• 1982 - 1984 Rampage
• 1975 - 1977 Royal Monaco
• 1987 - 1994 Shadow
• 1989 - 1995 Spirit
• 1979 - 1981 St. Regis
• 1995 - 2000 Stratus

EAGLE

• 1993 - 1997 Vision

JEEP

• 1997 - 2001 Cherokee
• 1993 - 1998 Grand Cherokee
• 1992 Grand Wagoneer
• 1997 - 2001 Wrangler

PLYMOUTH

• 1989 - 1995 Acclaim
• 1996 - 2000 Breeze
• 1975 - 1977 Fury
• 1975 - 1989 Grand Fury
• 1978 - 1990 Horizon
• 1995 - 1999 Neon
• 1981 - 1989 Reliant
• 1983 - 1990 Scamp
• 1987 - 1994 Sundance
• 1979 - 1982 TC3
• 1974 - 1981 Trailduster
• 1983 - 1987 Turismo
• 1978 - 1983 Van
• 1984 - 2000 Voyager
